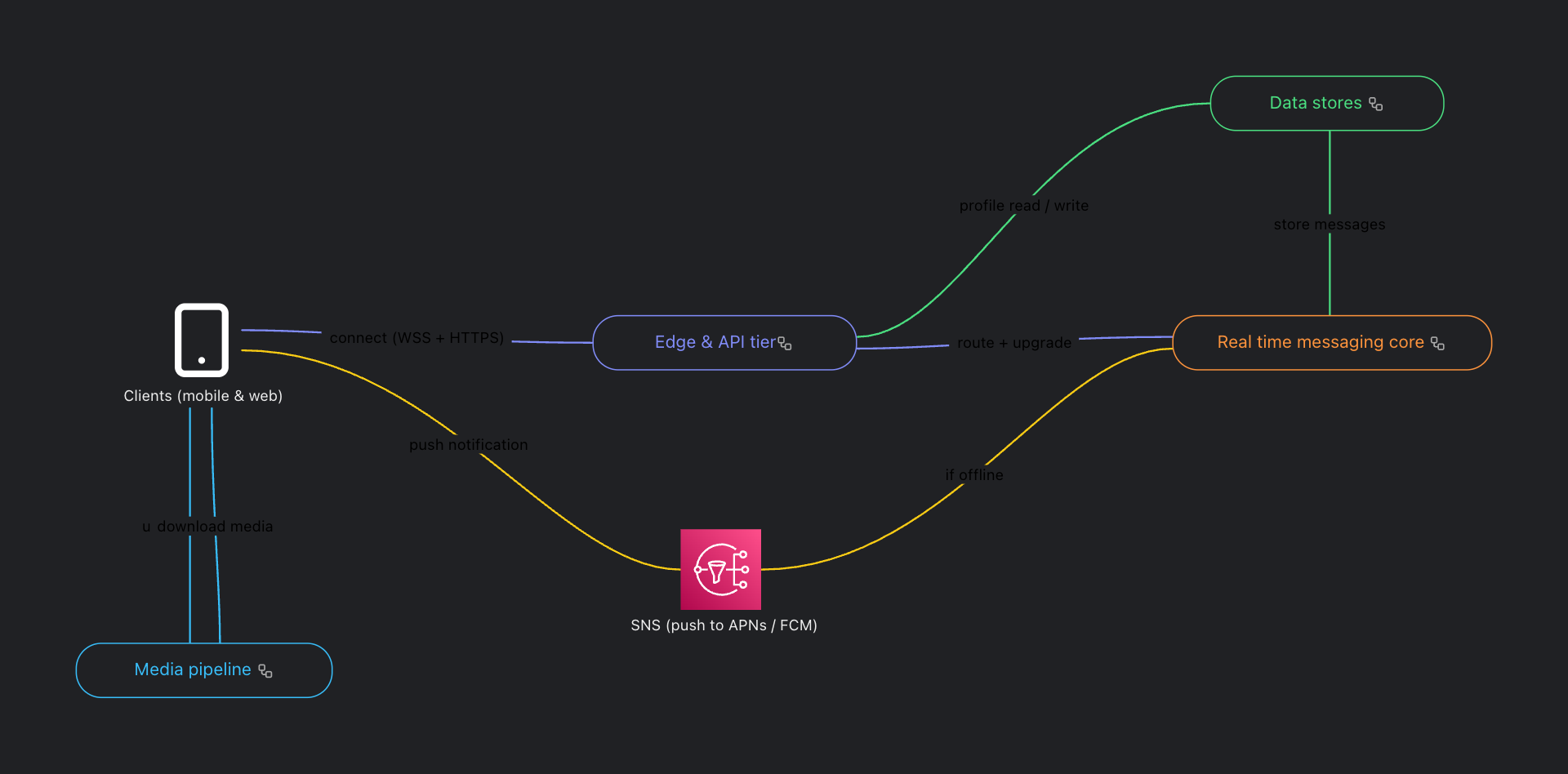

Design a Chat System (like WhatsApp)

How a WhatsApp style chat system works on AWS: WebSocket chat servers, a Kafka message queue, presence, a Cassandra message store, offline push through SNS, and an S3 plus CloudFront media pipeline. Two levels: open each container to see the detail.
