Design a Ride Hailing Service (like Uber)

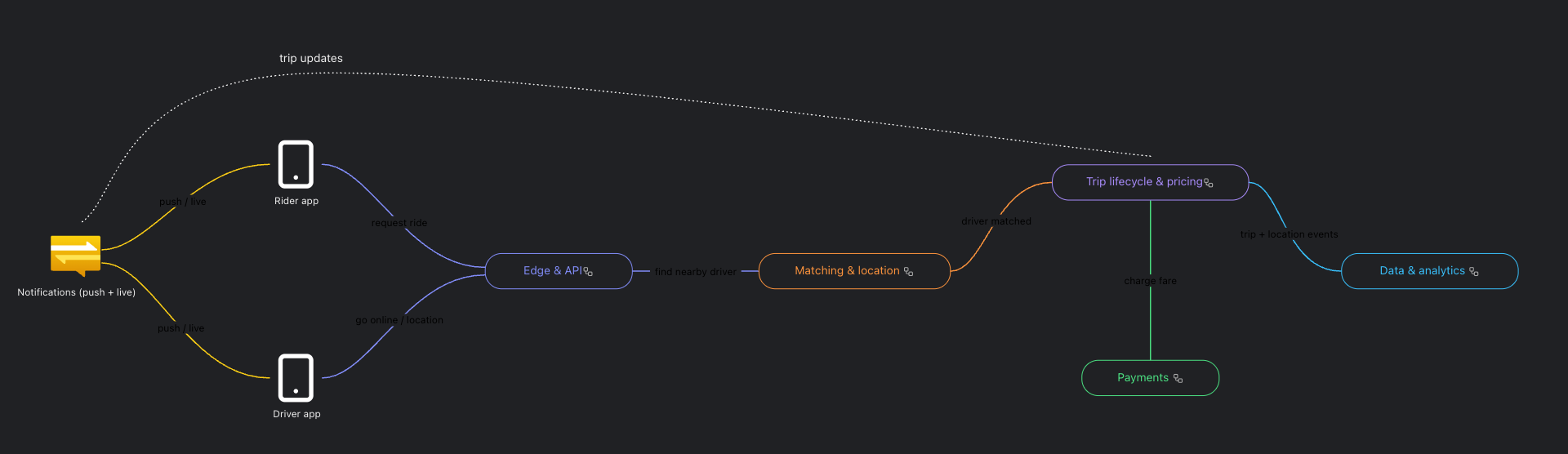

How ride hailing works behind the scenes on Azure: rider and driver apps, API gateway, a matching service with a Redis geo index, trip lifecycle with Cosmos DB and Azure Maps for ETA, surge pricing, payments, and an Event Hubs to Synapse analytics pipeline. Two levels: open each container to see the detail.
